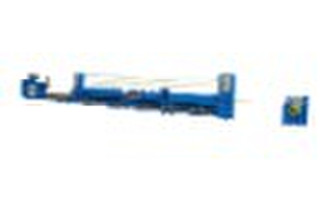

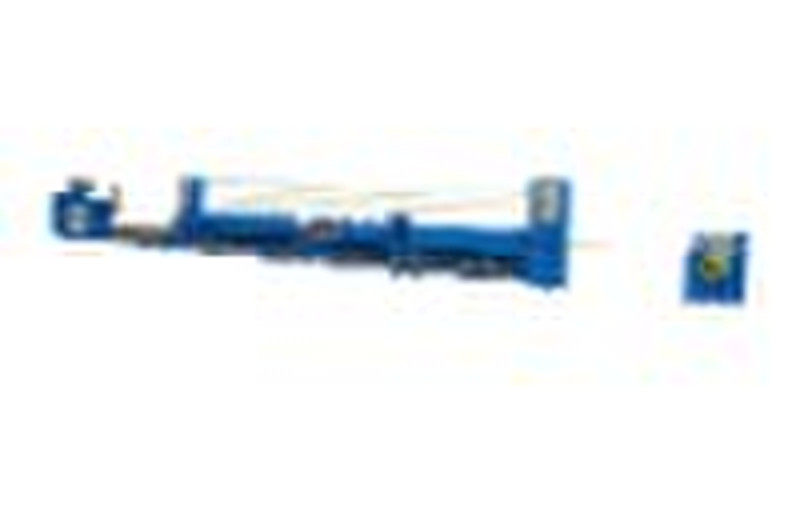

Model SJ80-CI PP Machine-use Package Tape Machine

This machine is developed by our factory for nearly 20 years fabrication and improvement. It is one advanced PP tape production processing equipment. Inverter speed control device is used for transmission of extruder. The die mouth gap is adjustable. The inverter speed control technology is applied in regulation of drawing and stretching speed. The winder applies internationally advanced linear structure device to meet various sizes of product. The torque motor is used for tension transmission. The whole system consists of twelve machines such as extruder, stainless steel cooling water tank, 3 rollers pulling sizing control panel, heating-stretching air oven, 5 rollers stretching control panel, electric corona treatment device, printing ink drying device, embossing device, anneal air oven device, cooling sizing water tank, 3 rollers pulling control panel and machine winder. The screw and cylinder of extruder adopt 38CrMoAl nitrogen treatment. In the production of PP package tapes, new material is used as primary material, the quality of PP tape will be improved greatly. Item Type Screw of extruderExtruder motor powerMain extruder heating powerDehydration blowing powerPulling motor powerHeating air oven powerStretching oven powerStretching motor powerPrinting ink oven powerSJ80-CIø 80mm11KW22.3KW0.75KW0.75KW6.0KW1.8KW3.0KW1.2KW Anneal oven powerPulling motor powerWinder motor powerPoduction capabilityDeviation degreeSizeL*W*H(mm)weightVariety of productionProduct specification6.0KW1.5KW0.75KW≥40kg/h<2.0%18800*800*18003200kgMachine-usepackage tapeMachine-use tape W:9.0-19.0mm T:0.6-1.2mm
