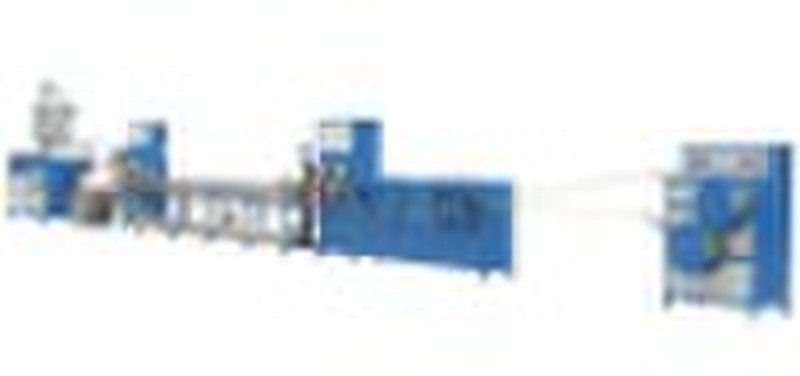

Model SJ90-DII PP Machine-Use Two-line Package Tap

This machine applies automatic feeding and drying facilities. The screw and barrel of extruder are made of 38CRMOAIA. The extruder head could be lift and down while the die mouth gap is adjustable, which is useful to change product size without shutdown. The inverter speed control is used in extrusion, drawing and stretching. The whole system consists of seven machines such as extruder, stainless steel cooling sizing water tank, stretching sizing control panel, stainless steel heating water tank, stretching sizing control panel, stretching-printing-embossing calender and two-position winder. Twin drawing technology is used in all drawing to optimize the flatness of package tape with clear pattern. The winder applies internationally advanced linear structure device to meet various sizes of product. PP is used as major raw material. The technical parameters are better than those of competitors in the market. Item Type Screw of extruderExtruder motor powerMain extruder heating powerPulling motor powerHeating air oven powerStretching motor powerDehydration motor powerSJ90-DIIø 90mm30KW34.3KW1.5KW18KW5.5KW0.18KW Corona treatment motor powerPrinting ink drying motor powerWinder motor powerPoduction capabilityDeviation degreeSizeL*W*H(mm)weightVariety of productionProduct specification1.0KW1.2KW1.5KW≥80kg/h<2.0%21700*1600*18003800kg Machine-usepackage tapeMachine-use tape W:9.0-19.0mm T:0.6-1.2mm
